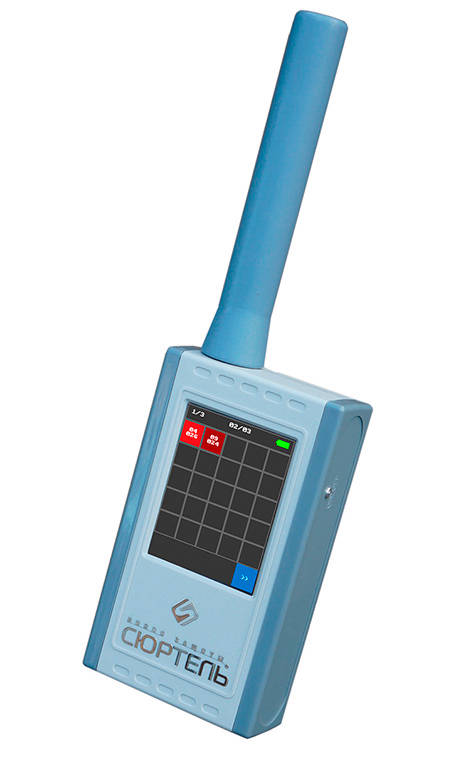

DESCRIPTIONSEL S-200 ARCANE is designed to remotely detect alive hidden video cameras irrespective of the way they record or transmit video information and irrespective of the means of concealment.
ARCANE can detect wired and wireless cameras as well; it is able to detect intrinsic spurious emanations of a camera.
The principle of operation is based on the analysis of certain parts of electromagnetic spectrum. In this manner it detects the emanating signals characteristic exclusively of miniature video cameras. The USB connection to a computer permits updating of the database of the known video cameras.
SEL S-200 Arcane is a newest modification of SP-102 ARCAM and SEL SP-101 Arkan.
Detection range - up to 15 m
Average detection time - from 5 up to 30 s
Sensitivity - -140 dBm (10 nV)
Spectrum resolution - 7 Hz
Number of parallel channels - 2
Number of detectable types of cameras - 10
Antenna - cylinder broadband

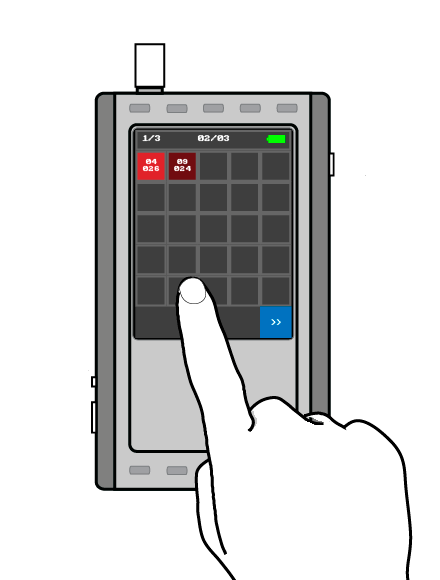

LCD display - colour touch screen
Indication - visual (spectrogram)
Non-stop operating time - no less than 1 hour
Dimensions - 85 x 140 x 40 mm
Weight - 0.5 kg
Operational temperatures - from -10 up to + 40° C
